| Model |
V20 |
| Keyboard Standard |
104 Keys |
| Operation Style |
Mechanical |
| Switch Type |
Pink Switch |
| Trigger Route |
3.8mm + 0.6mm |
| Key Force |
38gf + 5gf |
| Key Strokes Lifespan |
100 million times |
| Type |
Wired |
| Interface Type |
USB (Type-C to USB-A cable) |
| Full Size Keyboard |
Yes |
| Backlight Type |
Monochrome (White LED) |
| Number of Lighting Effects |
19 |
| Wrist Support |
No |
| Application |
Desktop, Laptop, Number, Tablet |
| Language |
English |
|
|
| Origin |
Mainland China |
| Certification |
CE, FCC, RoHS, WEEE |
| Hign-concerned Chemical |
None |
he EWEADN V20 is a full-size 104-key mechanical gaming keyboard designed with a distinctive punk typewriter aesthetic, featuring round keycaps and LED white backlighting. It offers a wired Type-C connection for reliable performance and includes a versatile multimedia knob for convenient control over lighting and audio. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your keyboard.

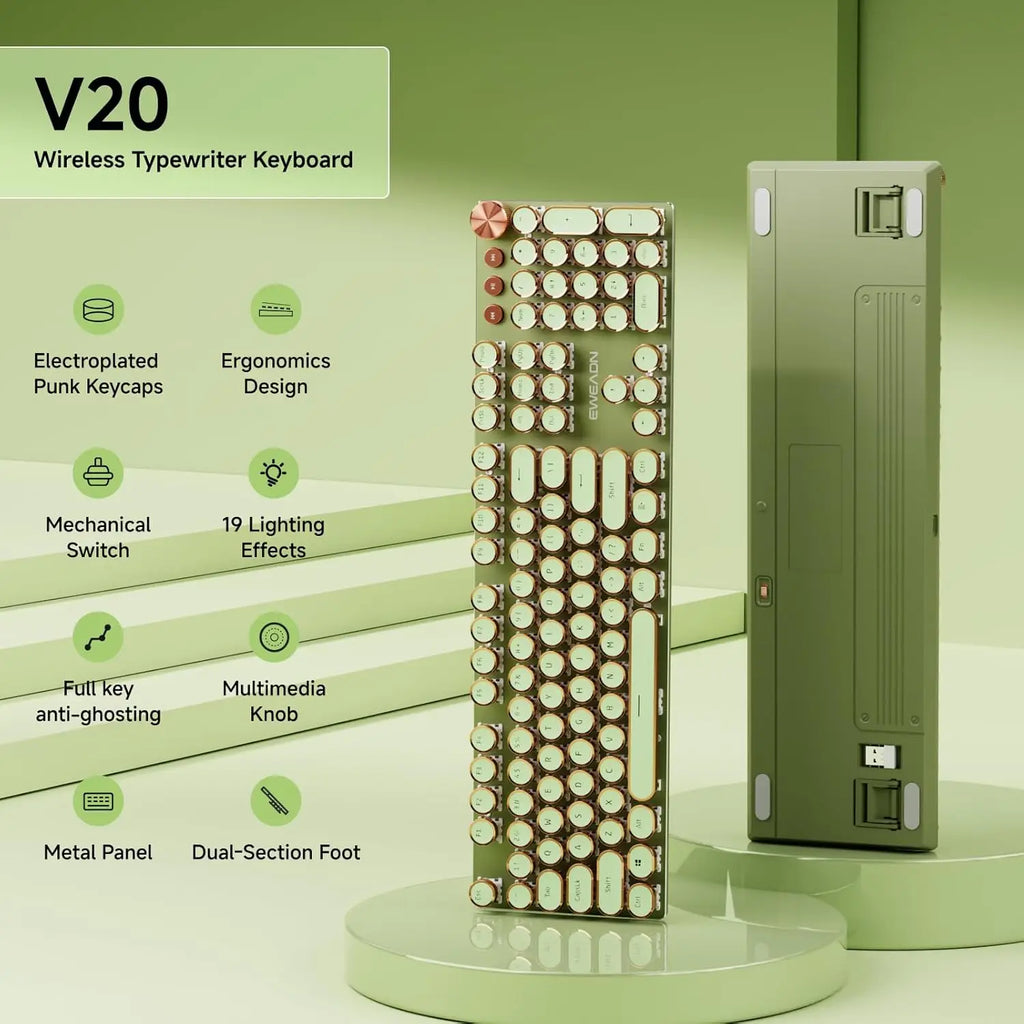

Figure 1: EWEADN V20 Mechanical Gaming Keyboard
Product Features
-
104-Key Full-Size Layout: Standard layout for comprehensive functionality.
-
Punk Typewriter Style: Unique round keycaps for a retro aesthetic.
-
Mechanical Switches: Durable and responsive Pink Switches with a 100 million key stroke lifespan.
-
Monochrome LED Backlighting: White LED illumination with 19 customizable lighting effects.
-
Detachable Type-C Cable: Key-wire separation design for reduced latency, high-speed response, and easy storage.
-
Multimedia Control Knob: Integrated knob for adjusting lighting effects, brightness, and volume.
-
Esports Gaming Chips: Optimized for gaming performance.
-
Double Leg Brace Design: Provides stable positioning.
-
Rubber Mat: Enhances stability and prevents slipping.
Figure 2: Overview of EWEADN V20 Product Features
Setup Guide
-
Unpack the Keyboard: Carefully remove the keyboard and its accessories from the packaging.
-
Connect the Type-C Cable:
- Locate the Type-C port on the keyboard.
- Connect one end of the provided Type-C cable to the keyboard.
- Connect the other end (USB-A) to an available USB port on your computer (Desktop, Laptop, Tablet).
Figure 3: Type-C Key Cable Separation Design
-
System Recognition: Your operating system should automatically detect and install the necessary drivers. No additional software installation is typically required.
-
Adjust Keyboard Feet: Extend the double leg braces on the underside of the keyboard for a more ergonomic typing angle, if desired.
Operating Instructions
Multimedia Knob Functions
The integrated multimedia knob provides quick access to lighting and audio controls:
-
Lighting Control:
-
Press: Change the lighting effect (cycle through 19 available effects).
-
Rotate Right: Increase brightness.
-
Rotate Left: Decrease brightness.
-
Volume Control:
-
Press for 3 Seconds: Enter volume mode.
- Once in volume mode:
-
Press: Mute/unmute audio.
-
Rotate Right: Increase volume.
-
Rotate Left: Decrease volume.
Figure 4: Multimedia Knob Controls
General Usage
The keyboard functions as a standard 104-key layout. Use the keys for typing, gaming, and other computer interactions. The mechanical switches provide tactile feedback and a satisfying typing experience.
Maintenance
-
Cleaning:
- Disconnect the keyboard from your computer before cleaning.
- Use a soft, dry cloth to wipe down the keycaps and keyboard surface.
- For deeper cleaning, use compressed air to remove dust and debris from between the keycaps.
- Avoid using harsh chemicals or abrasive materials.
-
Cable Care:
- The detachable Type-C cable allows for easy storage and transport.
- When disconnecting, pull from the connector head, not the cable itself, to prevent damage.
-
Storage: Store the keyboard in a dry, cool place away from direct sunlight and extreme temperatures.
